This post contains a set of 7 images from a run of extendedMerlin to 7 seconds...

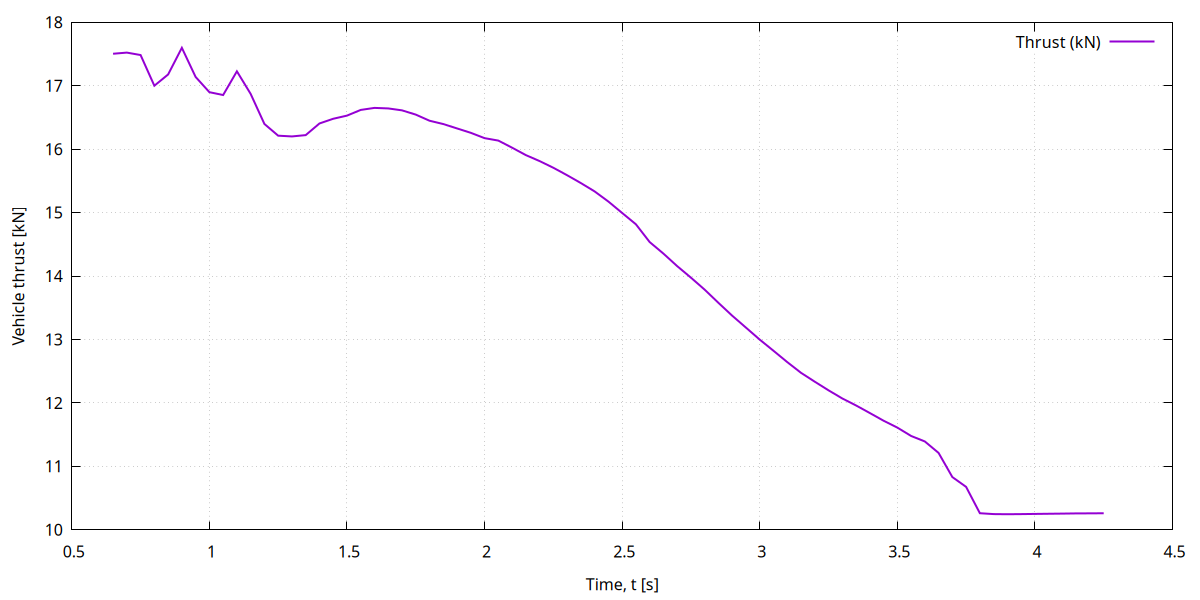

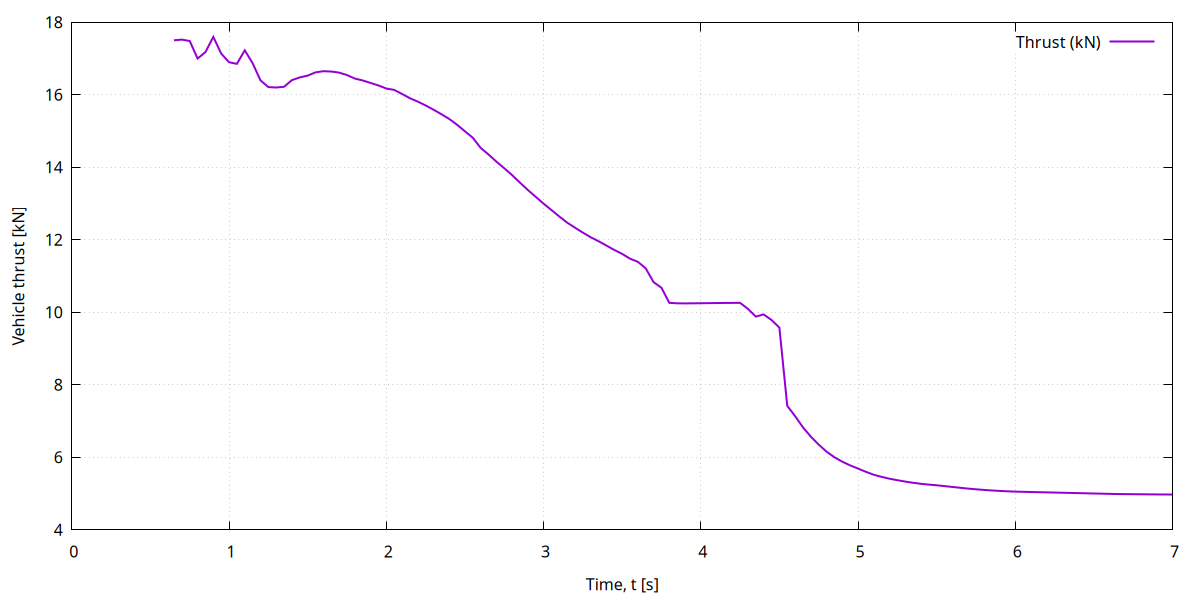

Thrust Over Time

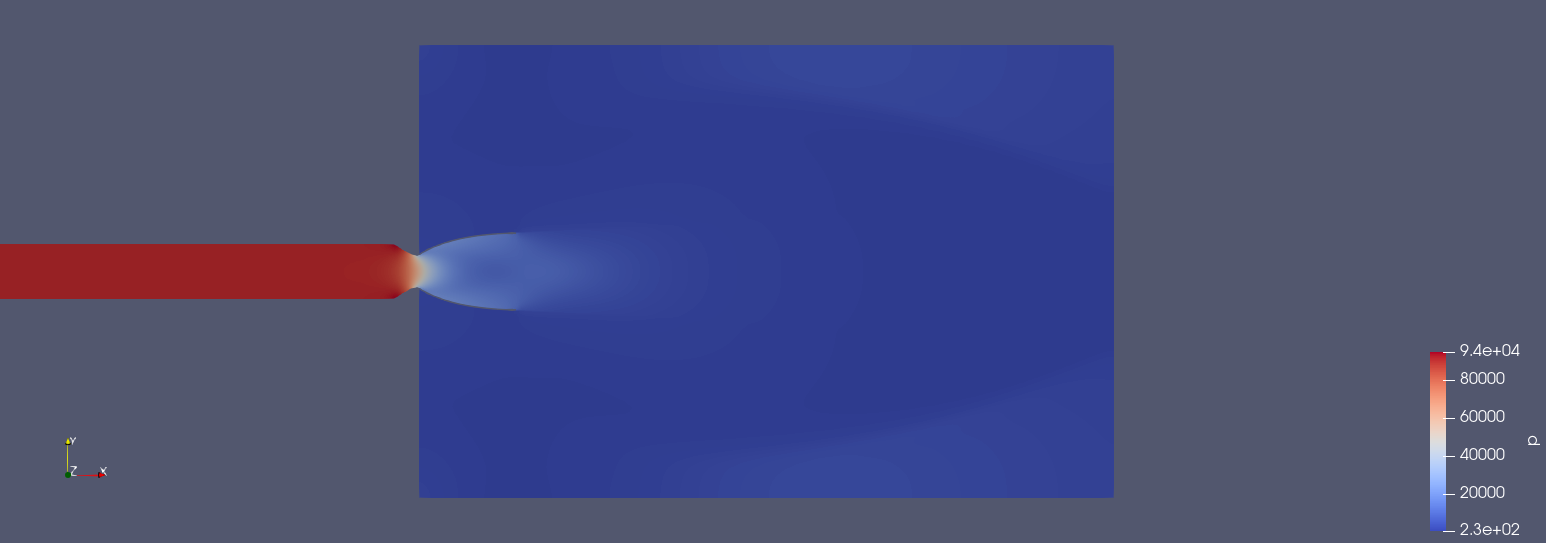

Engine Pressure

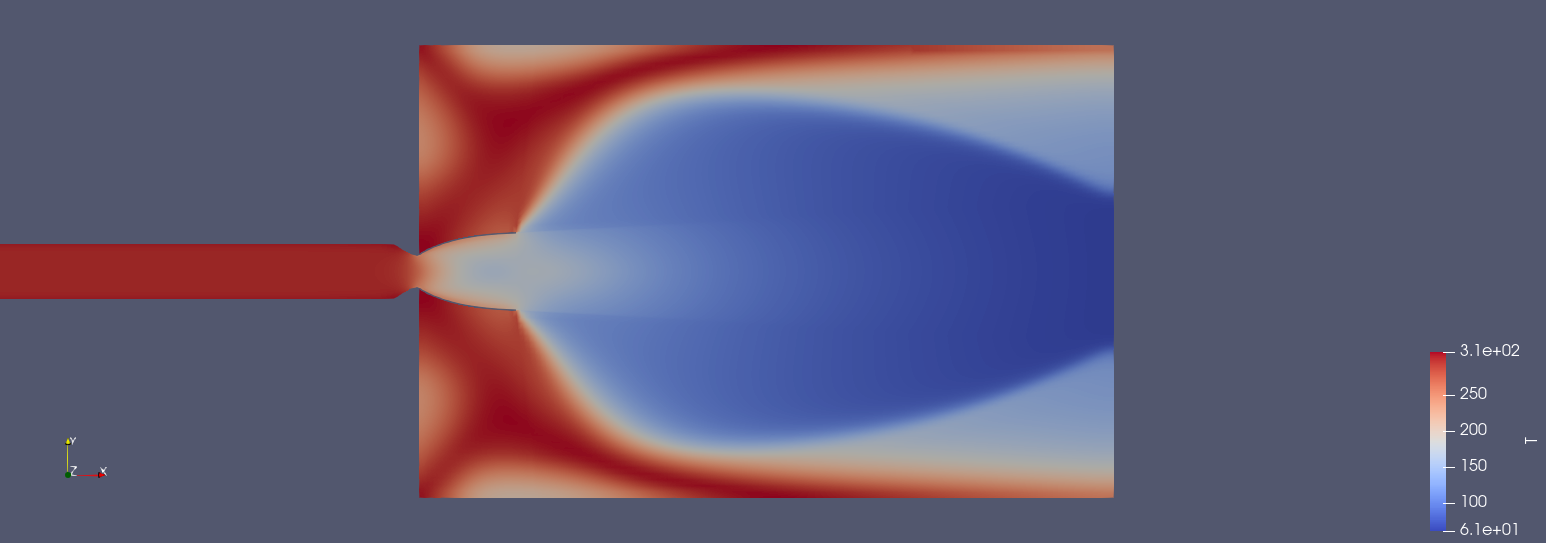

Engine Temperature

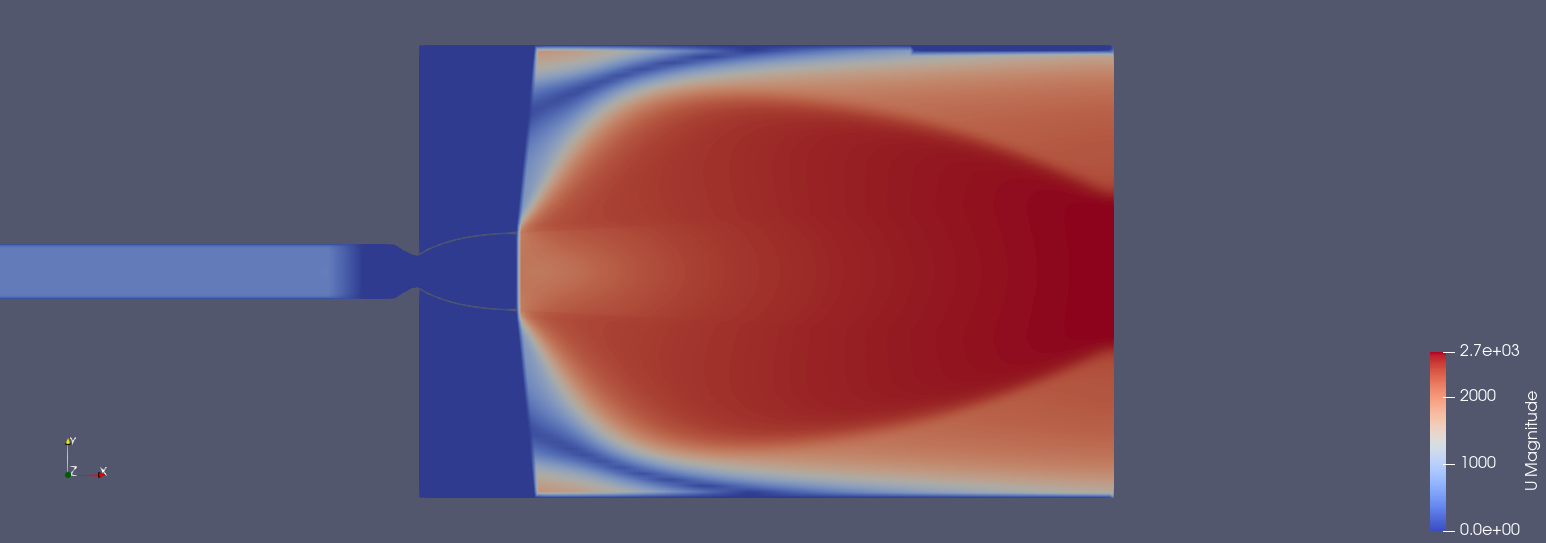

Engine Velocity

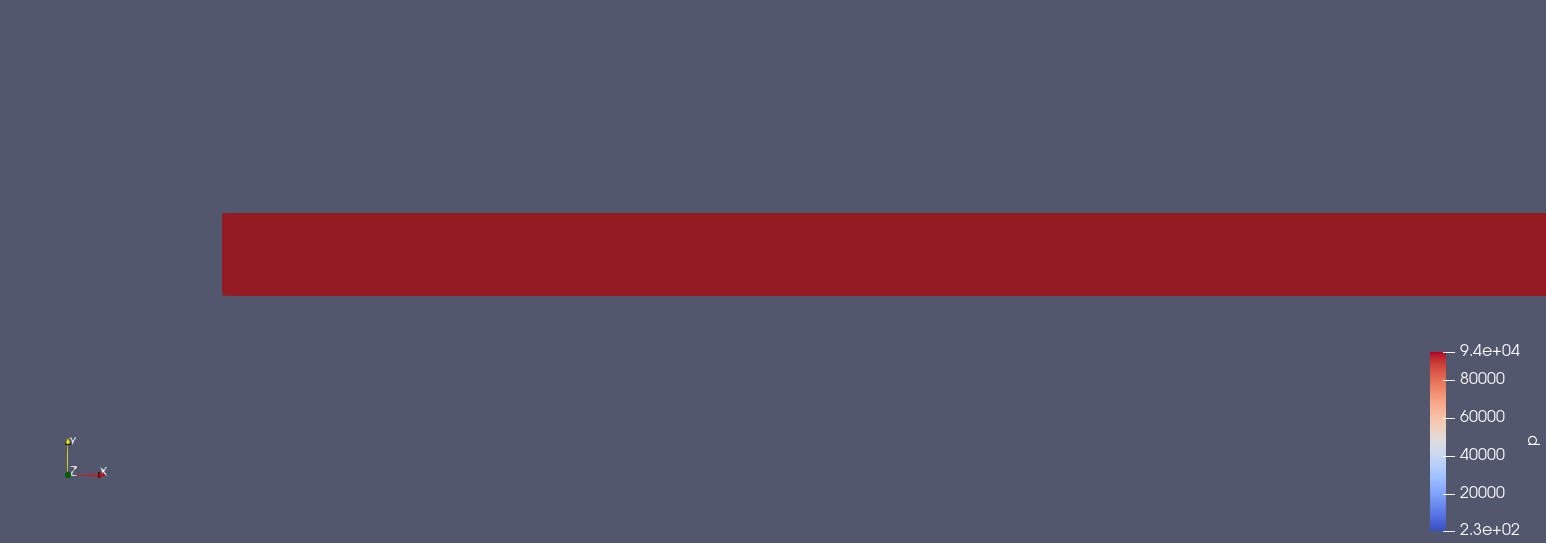

Intake Pressure

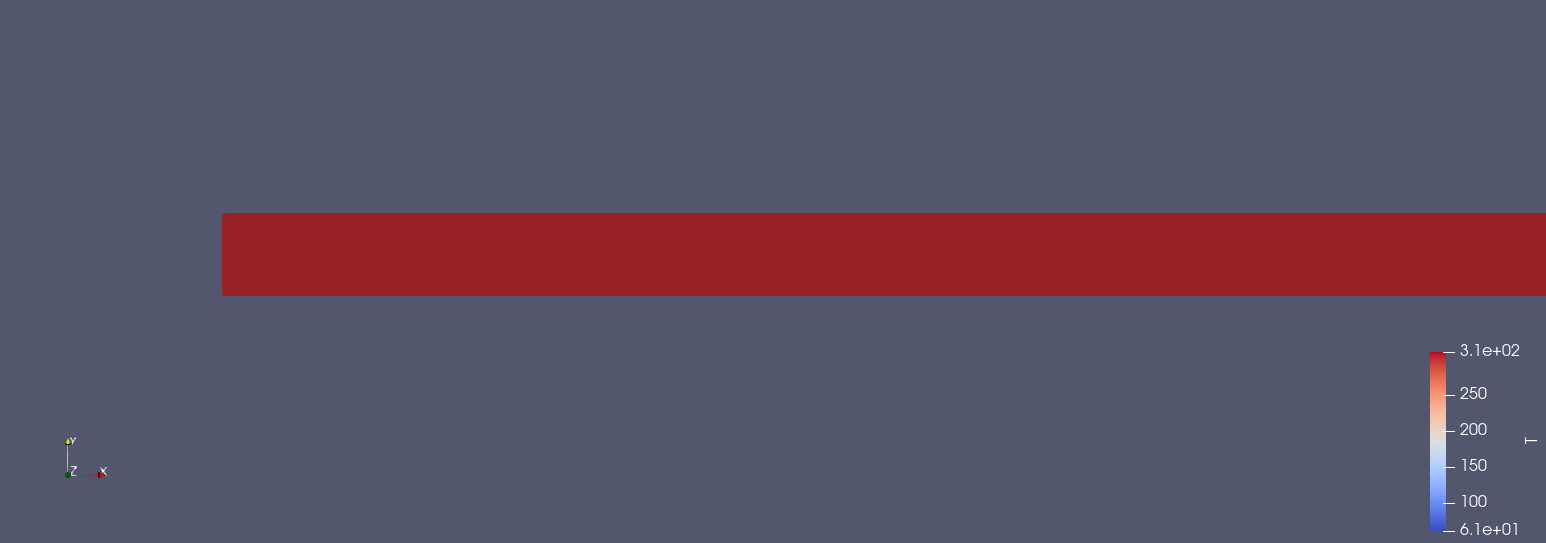

Intake Temperature

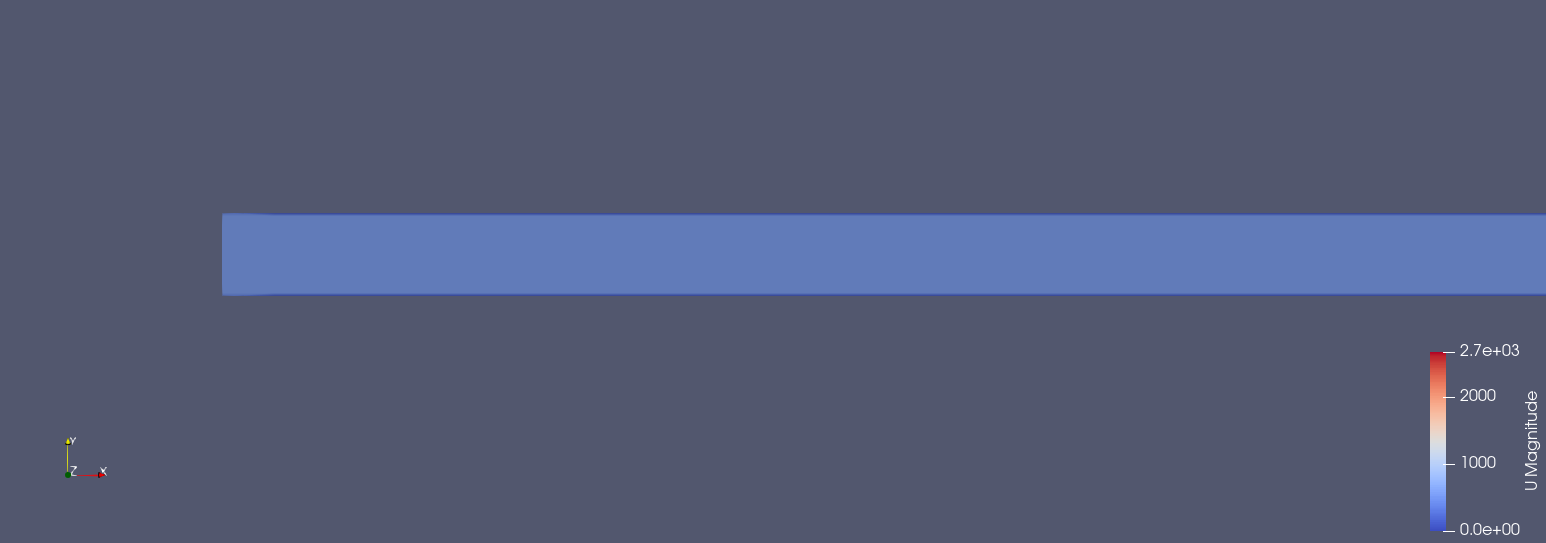

Intake Velociity


[tahanson43206]

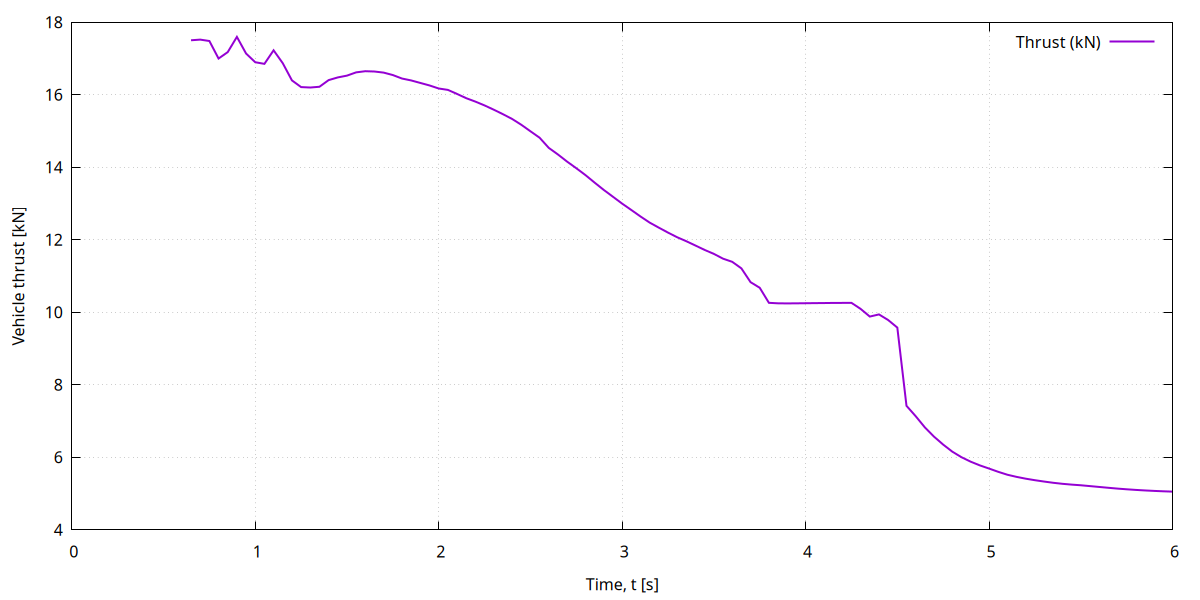

This image shows a plot of thrust for the extendedMerlin model, from .6 (point 6) seconds through 6 seconds)

Thrust from .6 seconds through 6 seconds


[tahanson43206]

These plots show properties of pipe as they related to the efficiency of thermal energy transfer via convection

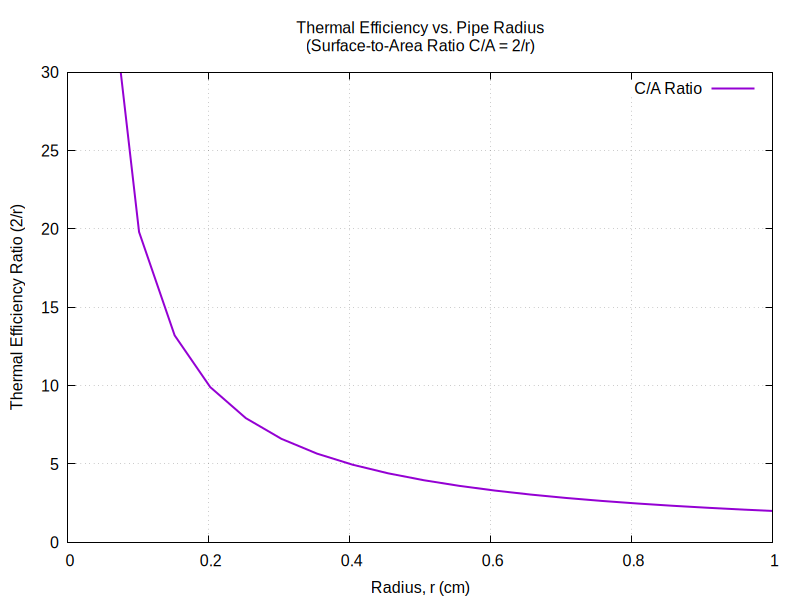

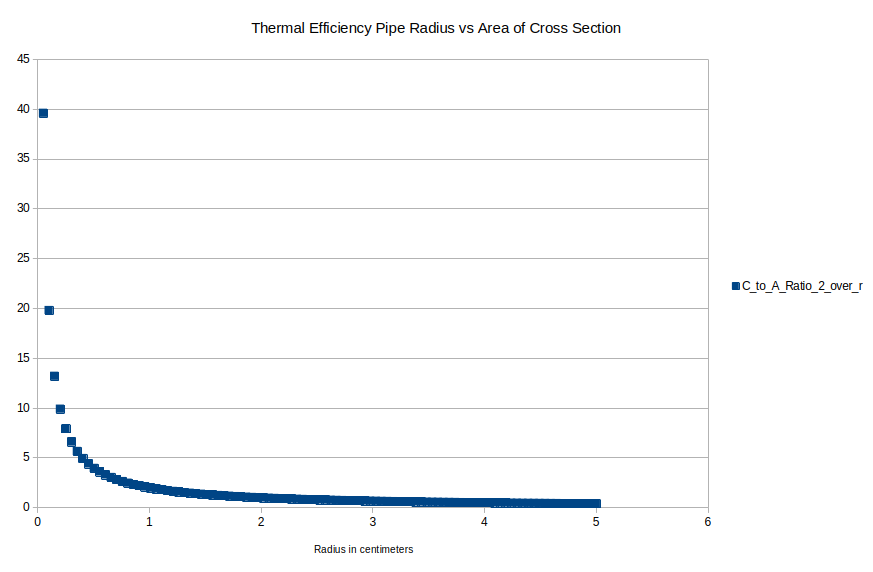

gnuplot showing 2 divided by radius


Calc plot showing 2 divided by radius

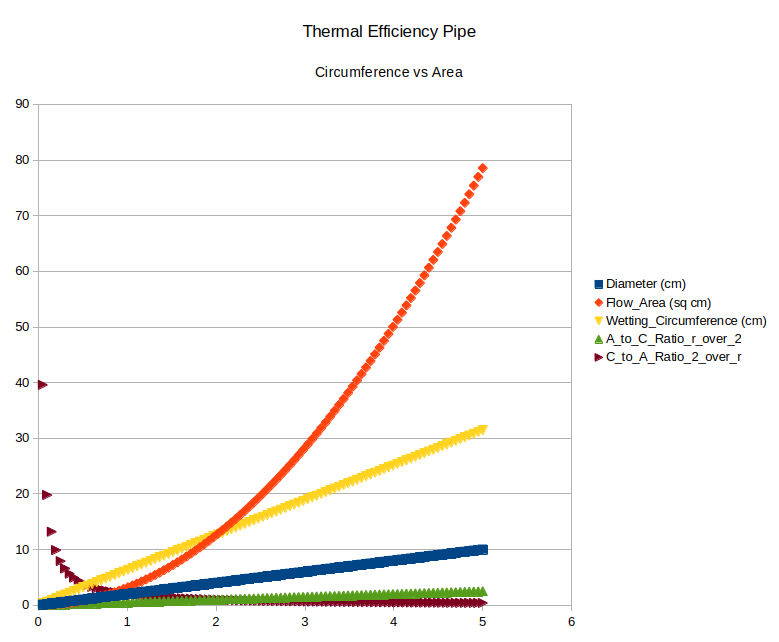

Calc plot showing radius, circumference, area

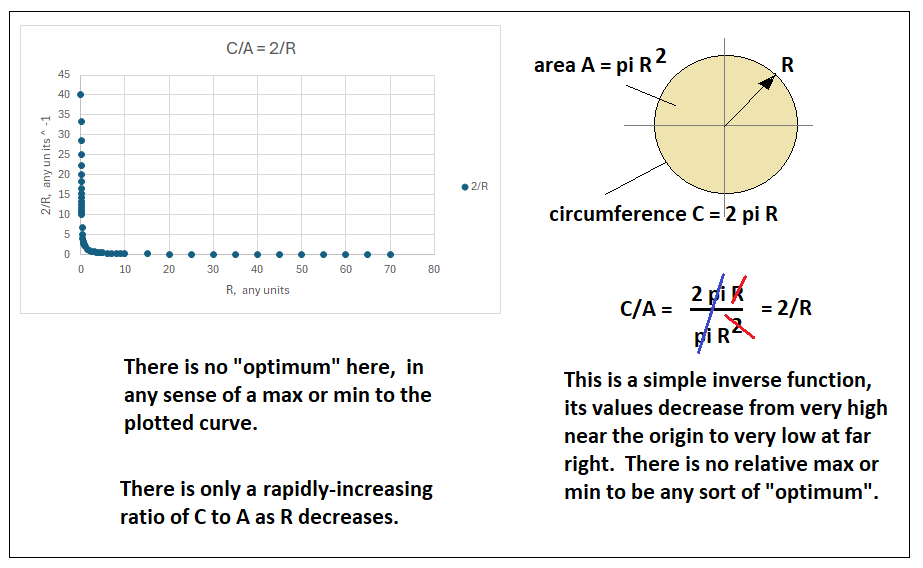

GW Johnson Version C to A ratio

C to A ratio.png (30.36 KiB) Viewed 46 times

GW Johnson Version C to A ratio

C to A ratio.png (30.36 KiB) Viewed 46 times

[tahanson43206]

This may be the last post for this topic. Microsoft may close the Virtual Machine where this forum is running.
(th)

[tahanson43206]

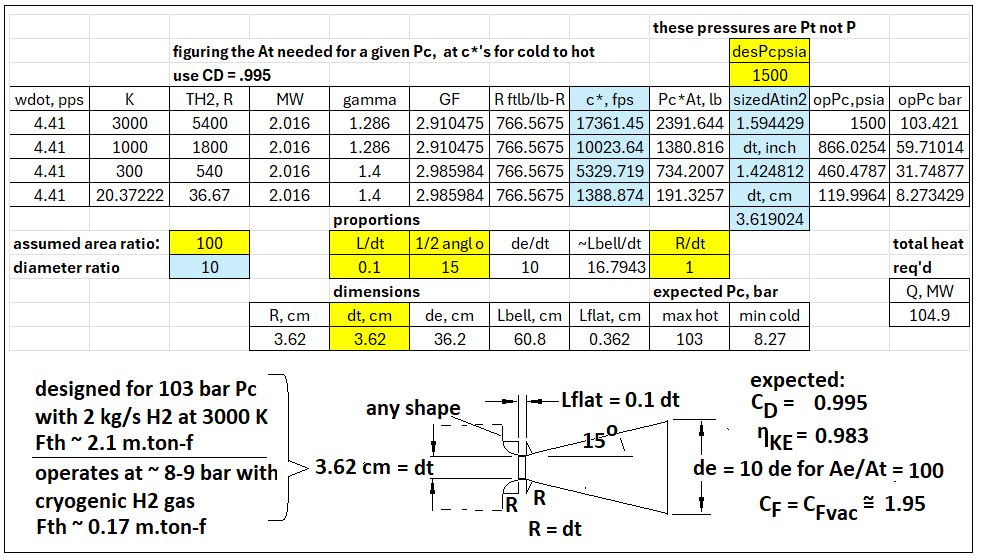

This image by GW Johnson shows details of a nozzle designed for use with hydrogen:

3 62 solar rocket nozzle.png (54.32 KiB) Viewed 56 times

[tahanson43206]

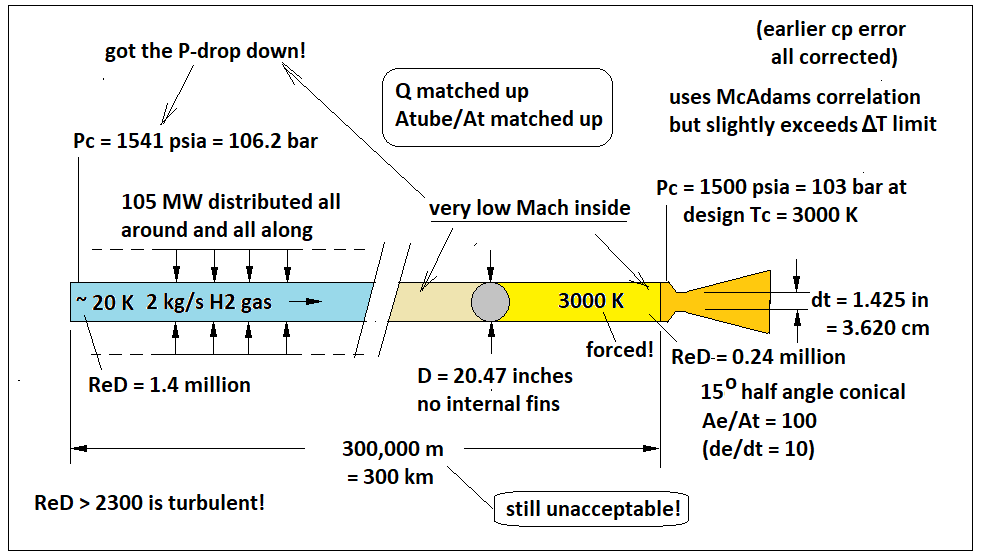

This image reflects GW Johnson study of heat tube physics:

20251110 heater tube redo.png

[tahanson43206]

This image reflects GW Johnson study of heat tube physics:

20251110 heater tube redo.png (36.16 KiB) Viewed 57 times

[tahanson43206]

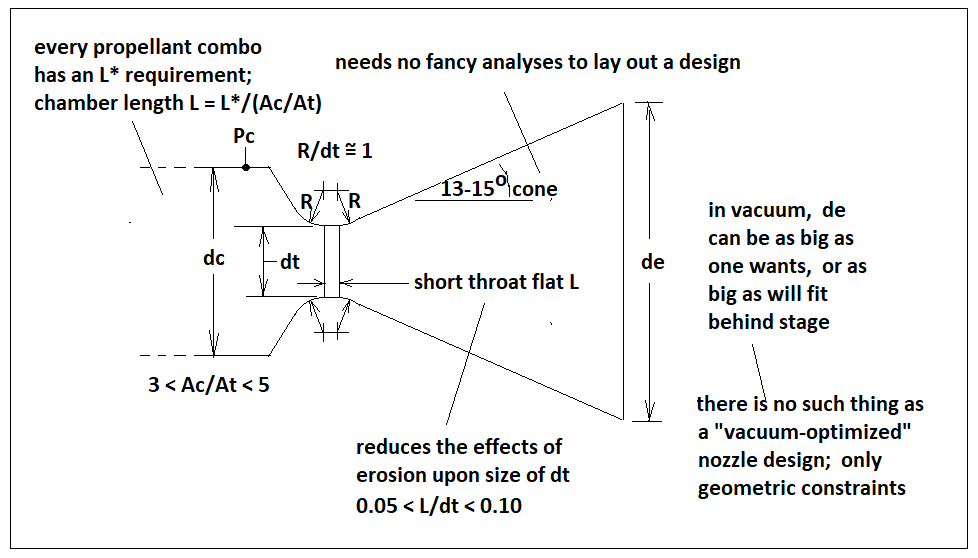

This image provides principles of Rocket design:

simple nozzle design.png (30.18 KiB) Viewed 60 times

[tahanson43206]

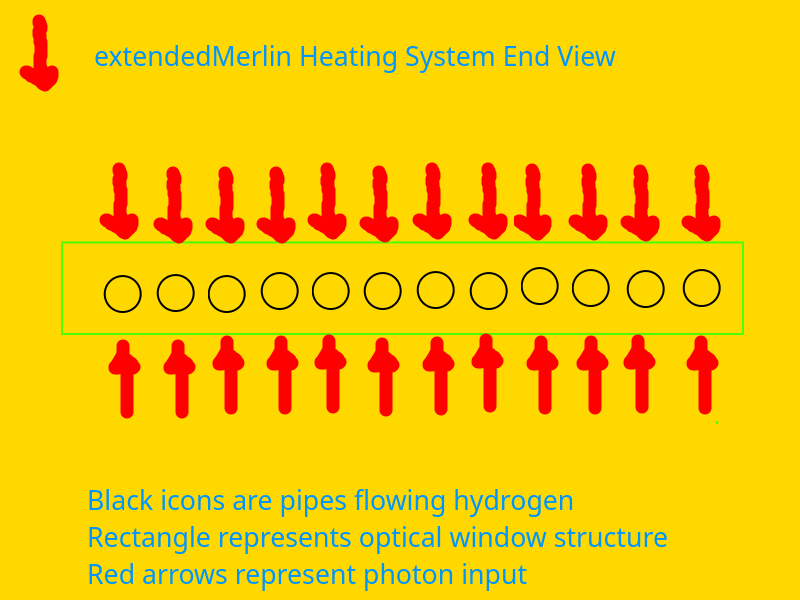

This drawing shows a possible arrangement of heating tubes for the Optical Plane engine


[tahanson43206]

These images are output from a run of extendedMerlin to 4.25 seconds. We can see that thrust is steady at just over 1 ton-force

Plot:

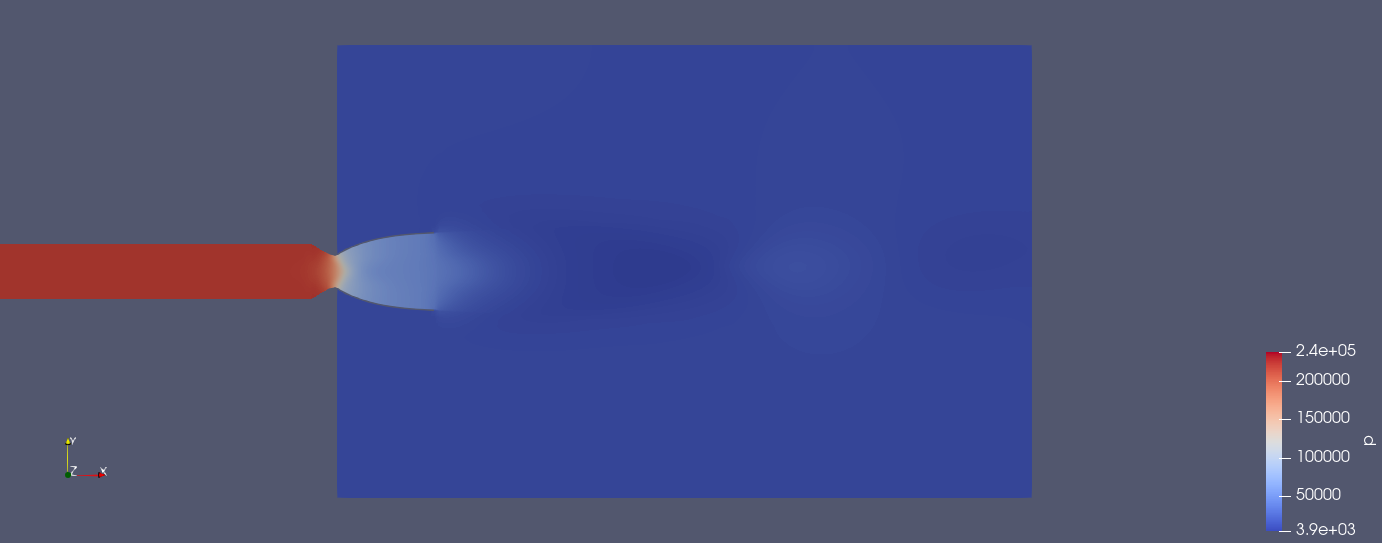

Engine Pressure:

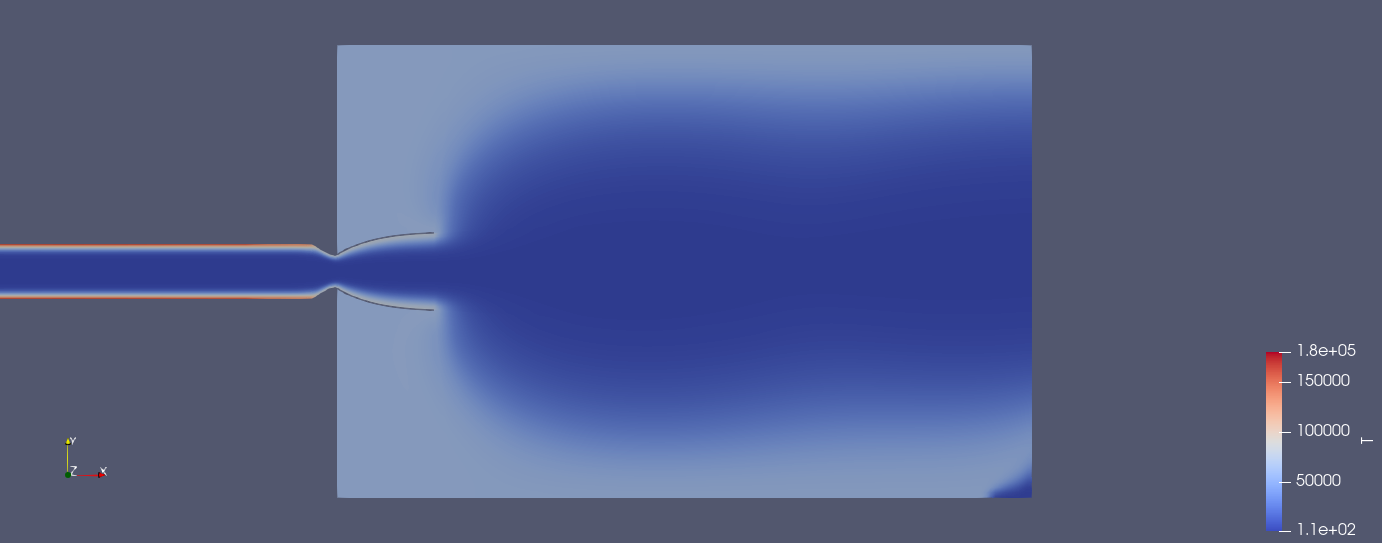

Engine Temperature:

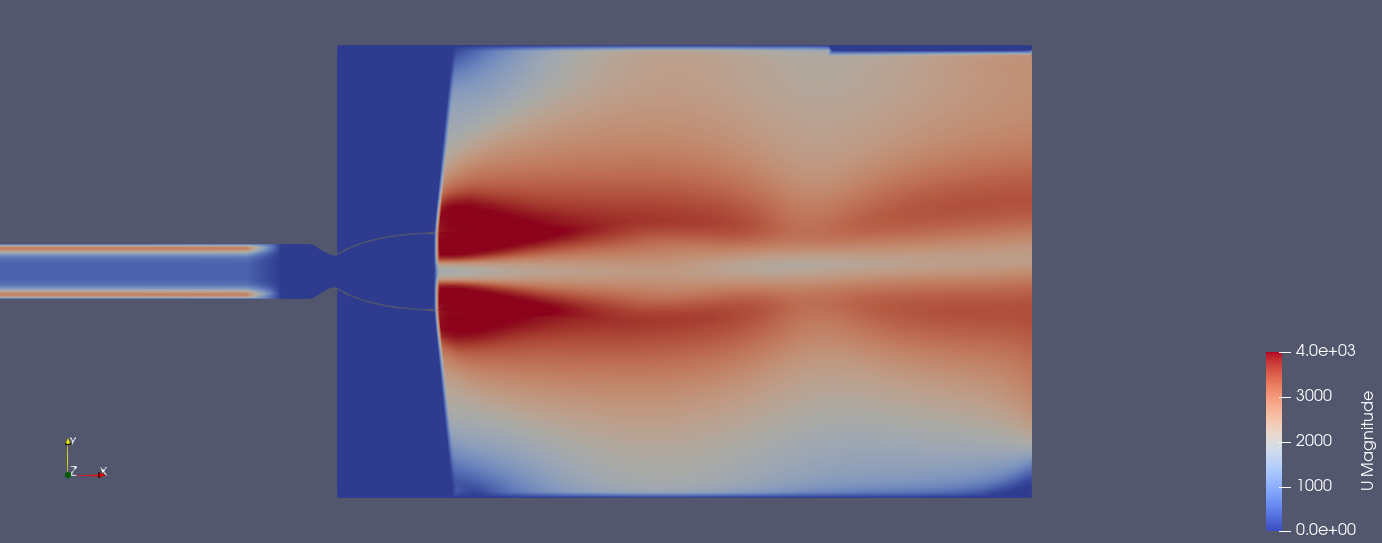

Engine Velocity:

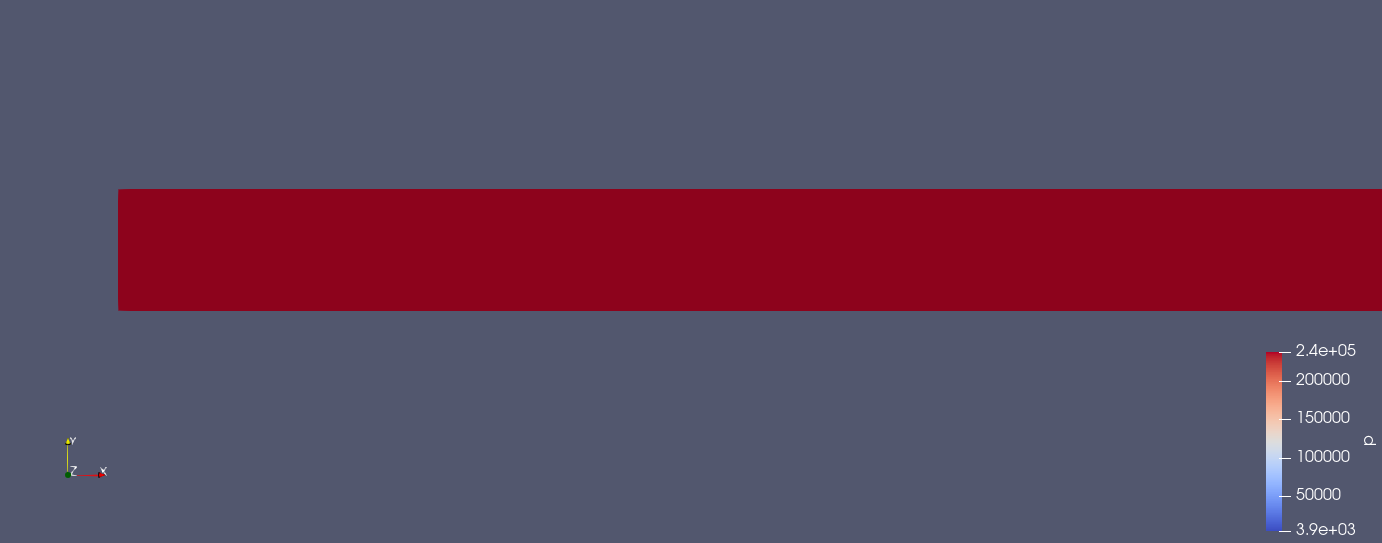

Intake Pressure:

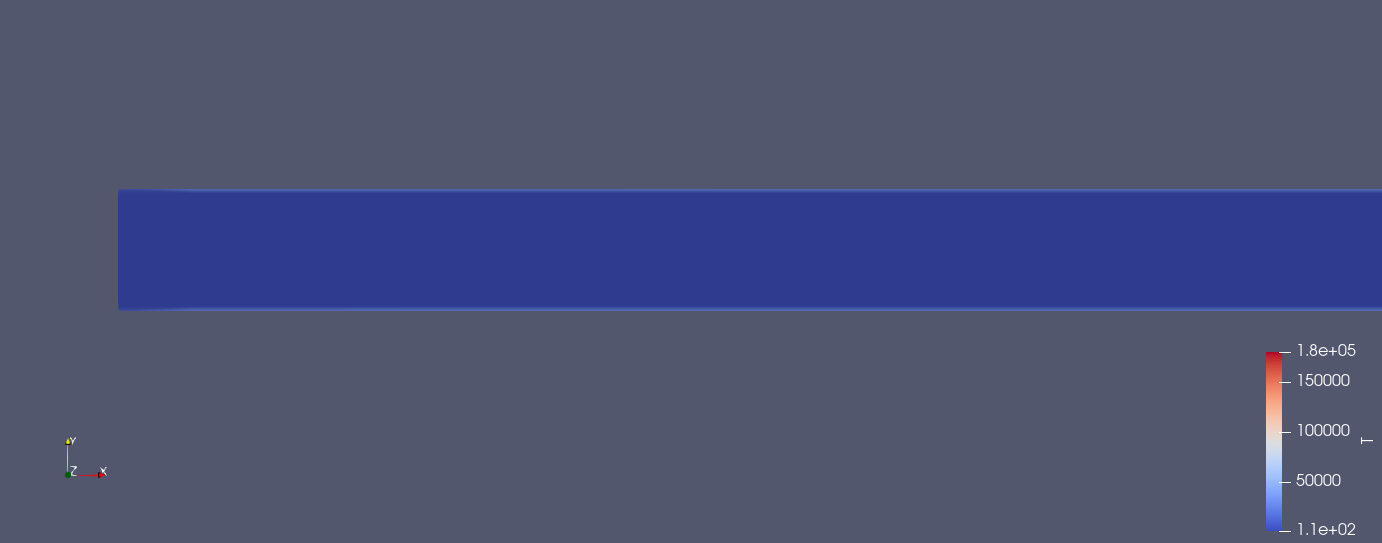

Intake Temperature;

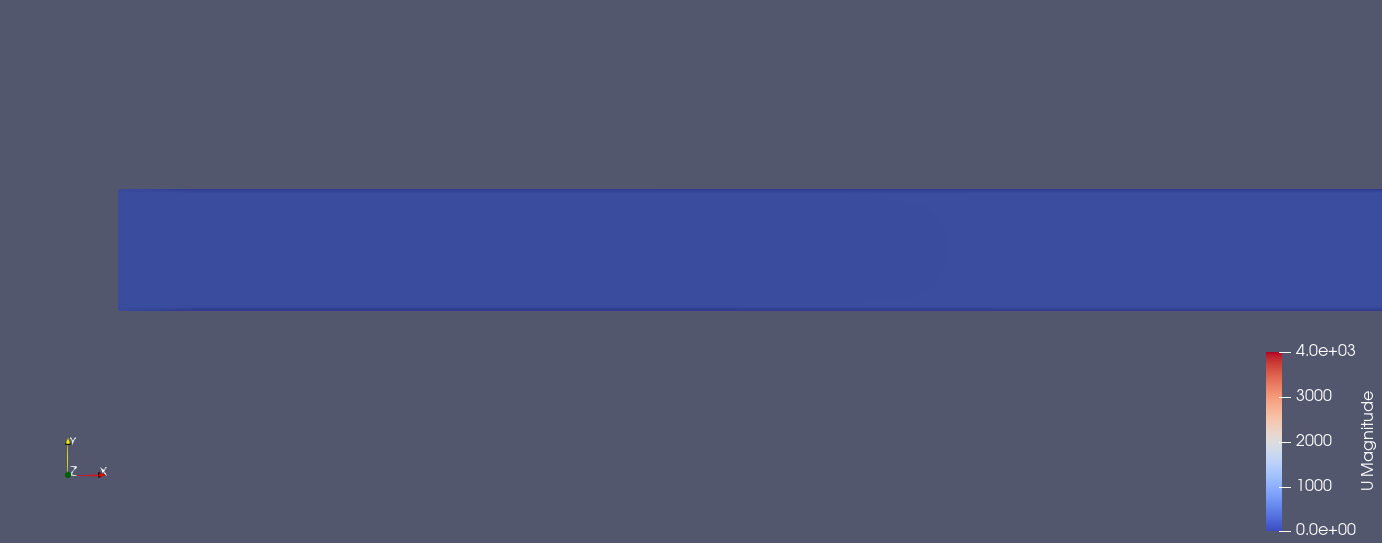

Intake Velocity:
